0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable） Manufacturer

JYTOP is a leading manufacturer of 0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable） in the field of power transmission and distribution

With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc.

JYTOP's 0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable） have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.

In this page, we'll introduce 0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable） and their advantages, applications, standards and frequently asked questions.

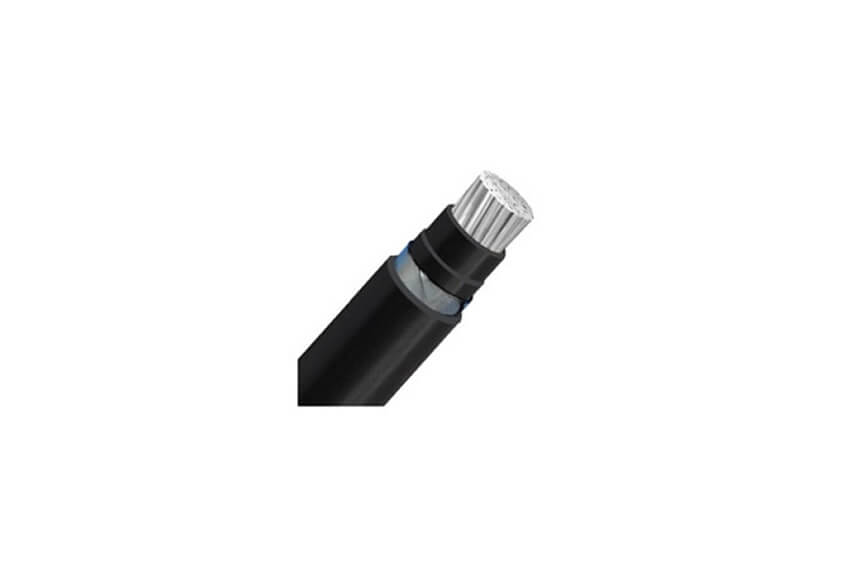

0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable）

Applications

NAYBY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Also Known As:

NAYBY Low voltage cable, NAYBY Cable, VLV22 Cable, 0.6/1 kV AL/PVC/STA/PVC Armored Power Cable

0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable）

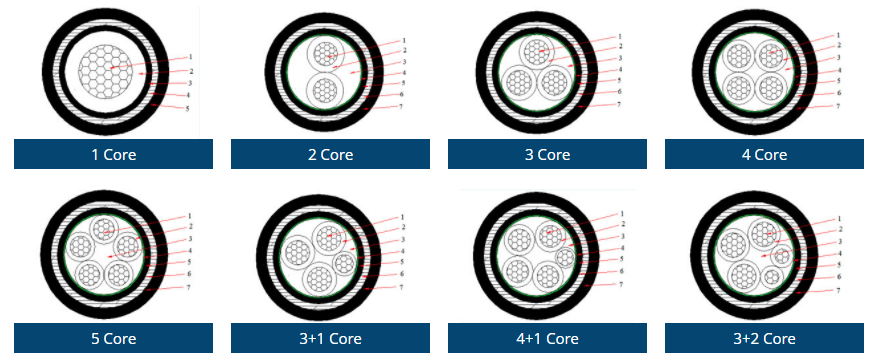

CONSTRUCTION

VV22/VLV22-0.6/1-kV-single-core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Inter sheath: Polyvinyl chloride PVC
4. Armour: Steel-tape
5. Sheath: Polyvinyl chloride PVC

VV/VLV-0.6/1-kV-multi core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Steel-tape
7. Outer sheath: Polyvinyl chloride PVC

ADDITIONAL STANDARDS

JYTOP’s 0.6/1 kV NAYBY Cable (AL/PVC/STA/PVC) meets or exceeds the following Standards

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable） Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding 0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable） chart,0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable） sizes,0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable） full form,0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable） ampacity,0.6/1 kV AL/PVC/STA/PVC Power Cable (NAYBY Cable） diameter and much, much more.

0.6/1 kV NAYBY Cable (AL/PVC/STA/PVC) manufactured by JYTOP meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

1 core 0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
1X10	1.0	0.2	1.8	12.4	228	3.08	38	54
1X16	1.0	0.2	1.8	13.5	271	1.91	51	71
1X25	1.2	0.2	1.8	15.2	339	1.2	66	92
1X35	1.2	0.2	1.8	15.8	383	0.868	81	110
1X50	1.4	0.2	1.8	17.5	466	0.641	98	130
1X70	1.4	0.2	1.8	19.1	563	0.443	120	160
1X95	1.6	0.2	1.8	21.1	694	0.32	150	195
1X120	1.6	0.2	1.8	22.5	800	0.253	180	225
1X150	1.8	0.2	1.8	24.5	949	0.206	205	250
1X185	2.0	0.2	1.8	26.4	1109	0.164	235	285
1X240	2.2	0.2	1.9	29.2	1365	0.125	280	330
1X300	2.4	0.2	1.9	32.0	1638	0.1	320	370
1X400	2.6	0.5	2.1	37.3	2432	0.0778	380	430
1X500	2.8	0.5	2.2	41.5	2954	0.0605	440	580
1X630	2.8	0.5	2.3	45.1	3490	0.0469	500	650

2 core 0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
2X2.5	0.8	0.2	1.8	13.5	251	12.1	-	-
2X4	1	0.2	1.8	15.3	311	7.41	-	-
2X6	1	0.2	1.8	16.3	352	4.61	-	-
2X10	1	0.2	1.8	19.0	447	3.08	38	54
2X16	1	0.2	1.8	21.2	549	1.91	51	71
2X25	1.2	0.2	1.8	24.5	712	1.2	66	92
2X35	1.2	0.2	1.8	25.8	810	0.868	81	110
2X50	1.4	0.2	1.9	29.3	1019	0.641	98	130
2X70	1.4	0.2	2.0	32.7	1264	0.443	120	160
2X95	1.6	0.5	2.1	38.9	2033	0.32	150	195
2X120	1.6	0.5	2.2	41.9	2343	0.253	180	225
2X150	1.8	0.5	2.4	45.9	2777	0.206	205	250
2X185	2	0.5	2.5	50.6	3319	0.164	235	285

3 core 0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X2.5	0.8	0.2	1.8	14.3	276	12.1	-	-
3X4	1.0	0.2	1.8	16.1	347	7.41	-	-
3X6	1.0	0.2	1.8	17.3	397	4.61	-	-
3X10	1.0	0.2	1.8	19.9	510	3.08	38	54
3X16	1.0	0.2	1.8	22.3	634	1.91	51	71
3X25	1.2	0.2	1.8	25.9	833	1.2	66	92
3X35	1.2	0.2	1.8	27.2	961	0.868	81	110
3X50	1.4	0.2	1.9	31.1	1229	0.641	98	130
3X70	1.4	0.2	2.0	35.2	1577	0.443	120	160
3X95	1.6	0.5	2.2	41.3	2432	0.32	150	195
3X120	1.6	0.5	2.3	44.6	2824	0.253	180	225
3X150	1.8	0.5	2.5	49.4	3424	0.206	205	250
3X185	2	0.5	2.6	54.0	4045	0.164	235	285
3X240	2.2	0.5	2.8	60.6	5047	0.125	280	330
3X300	2.4	0.5	3.0	66.4	6024	0.1	320	370

4 core 0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X2.5	0.8	0.2	1.8	14.9	320	12.1	-	-
4X4	1	0.2	1.8	17.2	396	7.41	-	-
4X6	1	0.2	1.8	18.5	457	4.61	-	-
4X10	1	0.2	1.8	21.5	597	3.08	38	54
4X16	1	0.2	1.8	24.1	747	1.91	51	71
4X25	1.2	0.2	1.8	28.1	989	1.2	66	92
4X35	1.2	0.2	1.9	29.8	1166	0.868	81	110
4X50	1.4	0.2	2.0	34.6	1537	0.641	98	130
4X70	1.4	0.5	2.2	40.0	2327	0.443	120	160
4X95	1.6	0.5	2.4	45.4	2951	0.32	150	195
4X120	1.6	0.5	2.5	49.5	3498	0.253	180	225
4X150	1.8	0.5	2.6	54.4	4191	0.206	205	250
4X185	2	0.5	2.8	60.0	5036	0.164	235	285
4X240	2.2	0.5	3.0	66.9	6229	0.125	280	330
4X300	2.4	0.5	3.2	73.4	7467	0.1	320	370

5 core 0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
5X2.5	0.8	0.2	1.8	16.1	356	12.1	-	-
5X4	1	0.2	1.8	18.4	459	7.41	-	-
5X6	1	0.2	1.8	19.9	525	4.61	-	-
5X10	1	0.2	1.8	23.2	700	3.08	38	54
5X16	1	0.2	1.8	26.2	871	1.91	51	71
5X25	1.2	0.2	1.9	30.8	1174	1.2	66	92
5X35	1.2	0.2	2.0	32.7	1391	0.868	81	110
5X50	1.4	0.5	2.2	39.3	2224	0.641	98	130
5X70	1.4	0.5	2.3	43.9	2760	0.443	120	160
5X95	1.6	0.5	2.5	50.4	3574	0.32	150	195
5X120	1.6	0.5	2.6	54.4	4181	0.253	180	225
5X150	1.8	0.5	2.8	60.3	5093	0.206	205	250
5X185	2	0.5	3.0	66.1	6056	0.164	235	285
5X240	2.2	0.5	3.3	73.9	7520	0.125	280	330
5X300	2.4	0.5	3.5	81.5	9126	0.1	320	370

3+1 core 0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
1.0/0.8	0.2	1.8	16.7	383	7.41/12.1	-	-
1.0/1.0	0.2	1.8	18.2	443	4.61/7.41	-	-
1.0/1.0	0.2	1.8	20.8	561	3.08/4.61	38	54
1.0/1.0	0.2	1.8	23.5	711	1.91/3.08	51	71
1.2/1.0	0.2	1.8	27.2	937	1.2/1.91	66	92
1.2/1.0	0.2	1.8	28.4	1057	0.868/1.91	81	110
1.4/1.2	0.2	2.0	32.8	1378	0.641/1.2	98	130
1.4/1.2	0.5	2.1	38.0	2123	0.443/0.868	120	160
1.6/1.4	0.5	2.3	43.0	2673	0.32/0.641	150	195
1.6/1.4	0.5	2.4	47.3	3221	0.253/0.443	180	225
1.8/1.4	0.5	2.5	51.0	3703	0.206/0.443	205	250
2.0/1.6	0.5	2.7	56.2	4472	0.164/0.32	235	285
2.2/1.6	0.5	2.9	62.7	5540	0.125/0.253	280	330
2.4/1.8	0.5	3.1	68.9	6643	0.1/0.206	320	370

4+1 core 0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
44+12.5	1.0/0.8	0.2	1.8	18.0	429	7.41/12.1	-	-
46+14	1.0/1.0	0.2	1.8	19.6	508	4.61/7.41	-	-
410+16	1.0/1.0	0.2	1.8	22.5	653	3.08/4.61	38	54
416+110	1.0/1.0	0.2	1.8	25.6	832	1.91/3.08	51	71
425+116	1.2/1.0	0.2	1.8	29.8	1114	1.2/1.91	66	92
435+116	1.2/1.0	0.2	1.9	31.4	1280	0.868/1.91	81	110
450+125	1.4/1.2	0.5	2.1	37.9	2078	0.641/1.2	98	130
470+135	1.4/1.2	0.5	2.2	42.0	2555	0.443/0.868	120	160
495+150	1.6/1.4	0.5	2.4	48.3	3316	0.32/0.641	150	195
4120+170	1.6/1.4	0.5	2.6	52.4	3901	0.253/0.443	180	225
4150+170	1.8/1.4	0.5	2.7	56.8	4529	0.206/0.443	205	250
4185+195	2.0/1.6	0.5	2.9	63.0	5549	0.164/0.32	235	285
4240+1120	2.2/1.6	0.5	3.1	70.1	6828	0.125/0.253	280	330
4300+1150	2.4/1.8	0.5	3.4	77.3	8279	0.1/0.206	320	370

3+2 core 0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
34+22.5	1.0/0.8	0.2	1.8	17.5	410	7.41/12.1	-	-
36+24	1.0/1.0	0.2	1.8	19.3	495	4.61/7.41	-	-
310+26	1.0/1.0	0.2	1.8	21.8	621	3.08/4.61	38	54
316+210	1.0/1.0	0.2	1.8	25.0	797	1.91/3.08	51	71
325+216	1.2/1.0	0.2	1.9	28.9	1058	1.2/1.91	66	92
335+216	1.2/1.0	0.2	1.9	30.0	1178	0.868/1.91	81	110
350+225	1.4/1.2	0.2	2.1	35.6	1603	0.641/1.2	98	130
370+235	1.4/1.2	0.5	2.3	40.2	2365	0.443/0.868	120	160
395+250	1.6/1.4	0.5	2.4	45.8	3015	0.32/0.641	150	195
3120+270	1.6/1.4	0.5	2.6	50.5	3645	0.253/0.443	180	225
3150+270	1.8/1.4	0.5	2.7	53.8	4110	0.206/0.443	205	250
3185+295	2.0/1.6	0.5	2.9	60.2	5090	0.164/0.32	235	285
3240+2120	2.2/1.6	0.5	3.1	66.4	6195	0.125/0.253	280	330
3300+2150	2.4/1.8	0.5	3.3	73.0	7421	0.1/0.206	320	370
