0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable) Manufacturer

JYTOP is a leading manufacturer of 0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable) in the field of power transmission and distribution

With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc.

JYTOP's 0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable) have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.

In this page, we'll introduce 0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable) and their advantages, applications, standards and frequently asked questions.

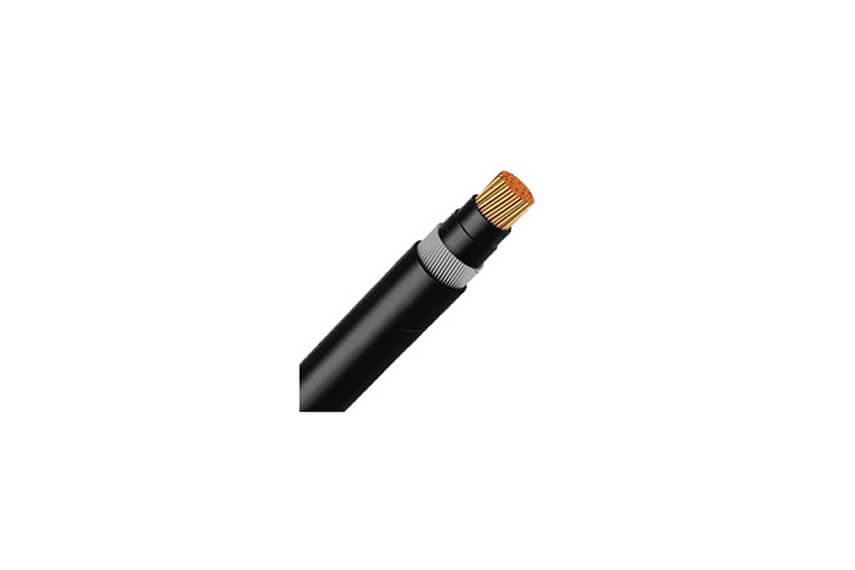

0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable)

Applications

N2XRY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Also Known As:

N2XRY Low voltage cable, N2XRY Cable, 0.6/1 kV CU/XLPE/SWA/PVC Armored Power Cable

0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable)

CONSTRUCTION

- Single-core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Inner sheath: Polyvinyl chloride PVC
4. Armour: Non-magnetic steel wire
5. Binder tape: Non-hygroscopic material
6. Outer sheath: Polyvinyl chloride PVC

- Multi core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Low carbon steel wire
7. Binder tape: Non-hygroscopic material
8. Outer sheath: Polyvinyl chloride PVC

ADDITIONAL STANDARDS

JYTOP’s 0.6/1 kV N2XRY Cable (CU/XLPE/SWA/PVC) meets or exceeds the following Standards

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable) Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding 0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable) chart,0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable) sizes,0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable) full form,0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable) ampacity,0.6/1 kV CU/XLPE/SWA/PVC Power Cable (N2XRY Cable) diameter and much, much more.

0.6/1 kV N2XRY Cable (CU/XLPE/SWA/PVC) manufactured by JYTOP meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

1 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
1X10	0.7	0.8	1.8	13.2	350	1.83	50	69
1X16	0.7	0.8	1.8	14.3	436	1.15	65	88
1X25	0.9	0.8	1.8	16	566	0.727	84	112
1X35	0.9	1.25	1.8	17.5	785	0.524	105	133
1X50	1	1.25	1.8	19	960	0.387	126	161
1X70	1.1	1.25	1.8	20.8	1211	0.268	161	196
1X95	1.1	1.6	1.8	23.1	1632	0.193	200	235
1X120	1.2	1.6	1.8	24.7	1935	0.153	235	270
1X150	1.4	1.6	1.8	26.6	2307	0.124	270	301
1X185	1.6	1.6	1.8	28.8	2730	0.0991	315	343
1X240	1.7	1.6	1.9	31.3	3358	0.0754	375	399
1x300	1.8	2	2	34.7	4277	0.0601	434	452
1x400	2	2	2.2	38.7	5362	0.047	504	515
1x500	2.2	2	2.3	42.9	6650	0.0366	585	588
1X630	2.4	2.5	2.4	48	8512	0.0283	672	665
1X800	2.6	2.5	2.6	52.7	10440	0.0221	777	756

2 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
2X2.5	0.7	0.8	1.8	14.8	364	7.41	23	32
2X4	0.7	0.8	1.8	15.7	425	4.61	30	41
2X6	0.7	1.25	1.8	17.6	646	3.08	39	53
2X10	0.7	1.25	1.8	20.1	802	1.83	53	70
2X16	0.7	1.25	1.8	22.3	1008	1.15	68	91
2X25	0.9	1.6	1.8	26.3	1470	0.727	91	116
2X35	0.9	1.6	1.8	27.6	1712	0.524	112	140
2X50	1	1.6	1.9	30.8	2123	0.387	137	168
2X70	1.1	2	2	35.4	2974	0.268	172	203
2X95	1.1	2	2.1	39.5	3737	0.193	214	249
2X120	1.2	2	2.3	42.9	4453	0.153	249	284
2X150	1.4	2.5	2.4	48	5744	0.124	284	315
2X185	1.6	2.5	2.6	52.7	6811	0.0991	326	357

3 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X2.5	0.7	0.8	1.8	15.3	405	7.41	20	27
3X4	0.7	0.8	1.8	16.2	481	4.61	26	36
3X6	0.7	1.25	1.8	18.3	696	3.08	33	45
3X10	0.7	1.25	1.8	20.9	930	1.83	46	60
3X16	0.7	1.25	1.8	23.3	1191	1.15	59	77
3X25	0.9	1.6	1.8	27.6	1745	0.727	77	98
3X35	0.9	1.6	1.8	29	2100	0.524	95	119
3X50	1	1.6	1.9	32.5	2628	0.387	119	144
3X70	1.1	2	2.1	37.9	3728	0.268	151	175
3X95	1.1	2	2.2	41.8	4692	0.193	186	210
3X120	1.2	2	2.3	45.5	5645	0.153	217	242
3X150	1.4	2.5	2.5	51.3	7350	0.124	245	270
3X185	1.6	2.5	2.7	55.9	8698	0.0991	284	305
3X240	1.7	2.5	2.9	62.1	10837	0.0754	336	350
3X300	1.8	2.5	3	67.4	12990	0.0601	389	396

4 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X2.5	0.7	0.8	1.8	16.1	472	7.41	20	27
4X4	0.7	1.25	1.8	18.1	677	4.61	26	36
4X6	0.7	1.25	1.8	19.3	804	3.08	33	45
4X10	0.7	1.25	1.8	22.3	1088	1.83	46	60
4X16	0.7	1.6	1.8	25.7	1571	1.15	59	77
4X25	0.9	1.6	1.8	29.7	2085	0.727	77	98
4X35	0.9	1.6	1.9	31.4	2543	0.524	95	119
4X50	1	1.6	2	35.3	3214	0.387	119	144
4X70	1.1	2	2.2	41.2	4571	0.268	151	175
4X95	1.1	2	2.3	45.6	5782	0.193	186	210
4X120	1.2	2.5	2.5	51.2	7557	0.153	217	242
4X150	1.4	2.5	2.7	56.1	9080	0.124	245	270
4X185	1.6	2.5	2.8	61.3	10822	0.0991	284	305
4X240	1.7	2.5	3.1	68.1	13566	0.0754	336	350
4X300	1.8	2.5	3.2	74.1	16356	0.0601	389	396

5 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
5X2.5	0.7	1.25	1.8	17.9	645	7.41	20	27
5X4	0.7	1.25	1.8	19.1	770	4.61	26	36
5X6	0.7	1.25	1.8	20.5	925	3.08	33	45
5X10	0.7	1.6	1.8	24.6	1417	1.83	46	60
5X16	0.7	1.6	1.8	27.6	1812	1.15	59	77
5X25	0.9	1.6	1.9	32.2	2460	0.727	77	98
5X35	0.9	1.6	2	34.1	3019	0.524	95	119
5X50	1	2	2.2	39.7	4166	0.387	119	144
5X70	1.1	2	2.3	44.9	5443	0.268	151	175
5X95	1.1	2.5	2.5	51.3	7485	0.193	186	210
5X120	1.2	2.5	2.7	55.9	9026	0.153	217	242
5X150	1.4	2.5	2.8	61.4	10912	0.124	245	270
5X185	1.6	2.5	3	67.6	13119	0.0991	284	305
5X240	1.7	2.5	3.3	74.8	16427	0.0754	336	350
5X300	1.8	3.15	3.5	83.2	20915	0.0601	389	396

3+1 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X4+1X2.5	0.7/0.7	1.25	1.8	17.8	873	4.61/7.41	26	36
3X6+1X4	0.7/0.7	1.25	1.8	19.1	764	3.08/4.61	33	45
3X10+1X6	0.7/0.7	1.25	1.8	21.6	1002	1.83/3.08	46	60
3X16+1X10	0.7/0.7	1.6	1.8	25.1	1475	1.15/1.83	59	77
3X25+1X16	0.9/0.7	1.6	1.8	28.7	2101	0.727/1.15	77	98
3X35+1X16	0.9/0.7	1.6	1.8	30	2300	0.524/1.15	95	119
3X50+1X25	1/0.9	1.6	2	34.1	2945	0.387/0.727	119	144
3X70+1X35	1.1/0.9	2	2.1	39.2	4131	0.268/0.524	151	175
3X95+1X50	1.1/1.0	2	2.3	43.2	5199	0.193/0.387	186	210
3X120+1X70	1.2/1.1	2.5	2.4	48.8	6827	0.153/0.268	217	242
3X150+1X70	1.4/1.1	2.5	2.6	52.9	7915	0.124/0.268	245	270
3X185+1X95	1.6/1.1	2.5	2.7	57.8	9655	0.0991/0.193	284	305
3X240+1X120	1.7/1.2	2.5	2.9	64.1	11988	0.0754/0.153	336	350
3X300+1X150	1.8/1.4	2.5	3.1	69.8	14475	0.0601/0.124	389	396

4+1 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X4+1X2.5	0.7/0.7	1.25	1.8	18.9	731	4.61/7.41	26	36
4X6+1X4	0.7/0.7	1.25	1.8	20.3	875	3.08/4.61	33	45
4X10+1X6	0.7/0.7	1.6	1.8	23.9	1295	1.83/3.08	46	60
4X16+1X10	0.7/0.7	1.6	1.8	27	1712	1.15/1.83	59	77
4X25+1X16	0.9/0.7	1.6	1.9	31.2	2322	0.727/1.15	77	98
4X35+1X16	0.9/0.7	1.6	1.9	32.8	2759	0.524/1.15	95	119
4X50+1X25	1/0.9	2	2.1	38.5	3860	0.387/0.727	119	144
4X70+1X35	1.1/0.9	2	2.3	43	5010	0.268/0.524	151	175
4X95+1X50	1.1/1.0	2.5	2.4	48.9	6850	0.193/0.387	186	210
4X120+1X70	1.2/1.1	2.5	2.6	54	8395	0.153/0.268	217	242
4X150+1X70	1.4/1.1	2.5	2.7	58.4	9745	0.124/0.268	245	270
4X185+1X95	1.6/1.1	2.5	2.9	64.4	11948	0.0991/0.193	284	305
4X240+1X120	1.7/1.2	2.5	3.1	71.1	14832	0.0754/0.153	336	350
4X300+1X150	1.8/1.4	3.15	3.4	78.9	18826	0.0601/0.124	389	396

3+2 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X4+2X2.5	0.7/0.7	1.25	1.8	18.6	705	4.61/7.41	26	36
3X6+2X4	0.7/0.7	1.25	1.8	20	845	3.08/4.61	33	45
3X10+2X6	0.7/0.7	1.25	1.8	22.5	1109	1.83/3.08	46	60
3X16+2X10	0.7/0.7	1.6	1.8	26.5	1630	1.15/1.83	59	77
3X25+2X16	0.9/0.7	1.6	1.8	30.2	2185	0.727/1.15	77	98
3X35+2X16	0.9/0.7	1.6	1.9	31.3	2505	0.524/1.15	95	119
3X50+2X25	1/0.9	2	2.1	37	3531	0.387/0.727	119	144
3X70+2X35	1.1/0.9	2	2.2	41.1	4572	0.268/0.524	151	175
3X95+2X50	1.1/1.0	2	2.4	45.8	5841	0.193/0.387	186	210
3X120+2X70	1.2/1.1	2.5	2.6	52.1	7765	0.153/0.268	217	242
3X150+2X70	1.4/1.1	2.5	2.7	55.4	8758	0.124/0.268	245	270
3X185+2X95	1.6/1.1	2.5	2.8	60.8	10777	0.0991/0.193	284	305
3X240+2X120	1.7/1.2	2.5	3	67.4	13385	0.0754/0.153	336	350
3X300+2X150	1.8/1.4	2.5	3.2	73.6	16100	0.0601/0.124	389	396
